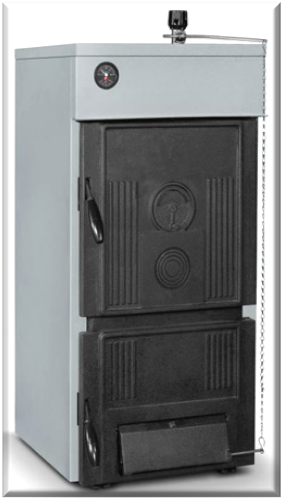

Cazane din fonta pe combustibil solid :

Sunt cazane din fonta, destinate producerii apei calde. Functioneaza pe combustibil solid: carbune, lemn,bricheti din carbune sau din lemn, crengi uscate .

Caracteristici tehnice UM KY 03 KY 04 KY 05 KY 06 KY 07 KY 08 KY 10
Numar elementi buc 3 4 5 6 7 8 10
Putere termica nominala (carbune) kW 15 21 26.5 32.5 37 41 50
kCal/h 12900 18060 22790 27950 31820 35260 43000
Putere termica nominala (lemn esenta tare) kW 14 18.5 24 29 33 37 46
kCal/h 12040 15910 20640 24940 28380 31820 39560
Putere nominala focar kW 19 26.6 33.5 41.1 46.8 51.9 63.3
Putere termica minima kW 7.6 10.6 13.4 16.4 18.7 20.7 25.3
Temperatura max agent termic oC 90
Timp ardere pt. putere nominala (carbune) ora >4
Timp ardere pt. putere nominala (lemn esenta tare) ora >2
Domeniu reglare temperatura oC 30-90
Presiune max instalatie bar 4
Presiune minima instalatie bar 0.4
Continut apa cazan l 13.56 17.01 20.46 23.91 27.36 30.81 37.71
m3 0.01356 0.1701 0.02046 0.02391 0.02736 0.03081 0.03771
Diametrul racord evacuare gaze arse mm 130 150
Dimensiune camera ardere (lxh) mm 314X395
Dimensiuni camera ardere (L) mm 265 365 465 565 665 765 965
Racord intrare-iesire apa " G 11/2" G 2"
Racord golire cazan " G 1/2"
Racord intrare-iesire apa bucla racire de siguranta " G 1/2"
Volum de gaz al cazanului dm3 41.27 55.16 69.05 82.94 96.83 110.73 138.51
m3 0.041 0.055 0.069 0.083 0.097 0.111 0.139
Volum de gaz al camerei de ardere dm3 32.86 45.27 57.67 70.07 82.47 94.88 119.68
m3 0.033 0.045 0.058 0.07 0.082 0.095 0.12
Supapa de siguranta temperatura oC 95
Categorie cazan (cf EN 303-5) clasa 1
Temperatura iesire gaze arse (sarcina maxima) oC 215-260 190-225
Temperatura iesire gaze arse (sarcina partiala) oC 165-190 155-175
Nivel maxim de zgomot cf normelor in vigoare dB 45-60 (A)
Masa neta kg 227 265 308 345 379 417 500
Numar de Produs CE   B-30-00373-07
Cod MFG   041533-111 041533-112 041533-113 041533-114 041533-115 041533-116



Dim a b c d e f Fg   Fh  Fi  k m n
mm mm mm mm mm mm DN mm mm mm mm mm
1752 1040 1090 2150 140 200 65 800 200 65 1 1/4" 795
1752 1040 1090 2150 140 200 65 800 200 65 1 1/4" 795
1752 1110 1160 2152 140 200 65 900 250 65 1 1/4" 905
1752 1220 1270 2170 140 220 65 1000 300 65 1 1/4" 960
2340 1280 1330 2758 140 220 65 1050 300 65 1 1/2" 1015
2340 1330 1380 2758 140 220 80 1100 300 65 1 1/2" 1065
2347 1500 1550 2795 140 250 80 1260 300 65 1 1/2" 1230
2382 1600 1650 2830 140 250 80 1380 1380 65 1 1/2" 1340
2402 1660 1710 2850 140 250 80 1420 350 65 1 1/2" 1365
2402 1720 1770 2850 140 250 100 1490 350 65 1 1/2" 1430
2402 1740 1790 2850 140 250 100 1520 350 65 1 1/2" 1455
2472 1856 1906 2920 140 250 100 1620 350 65 1 1/2" 1565
